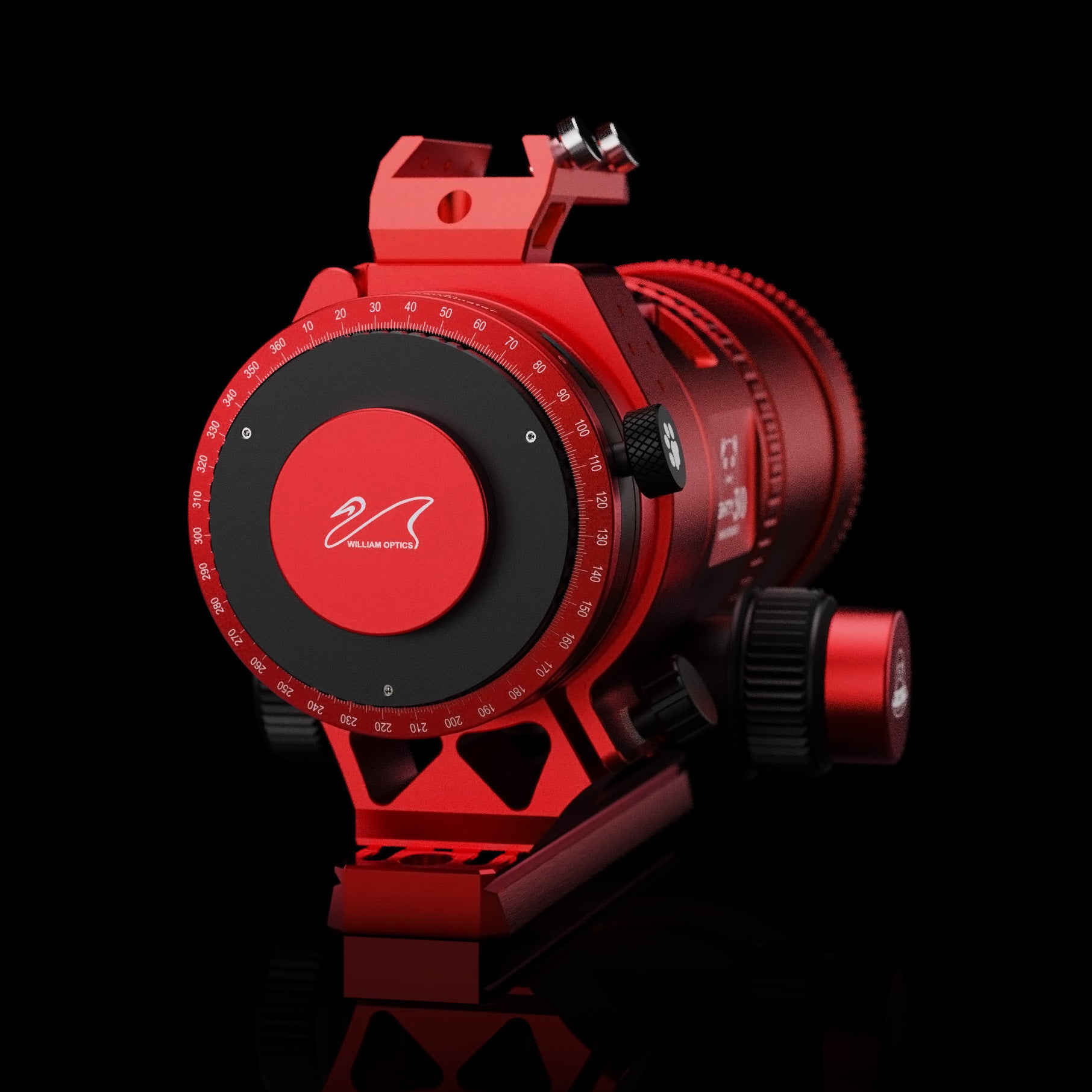

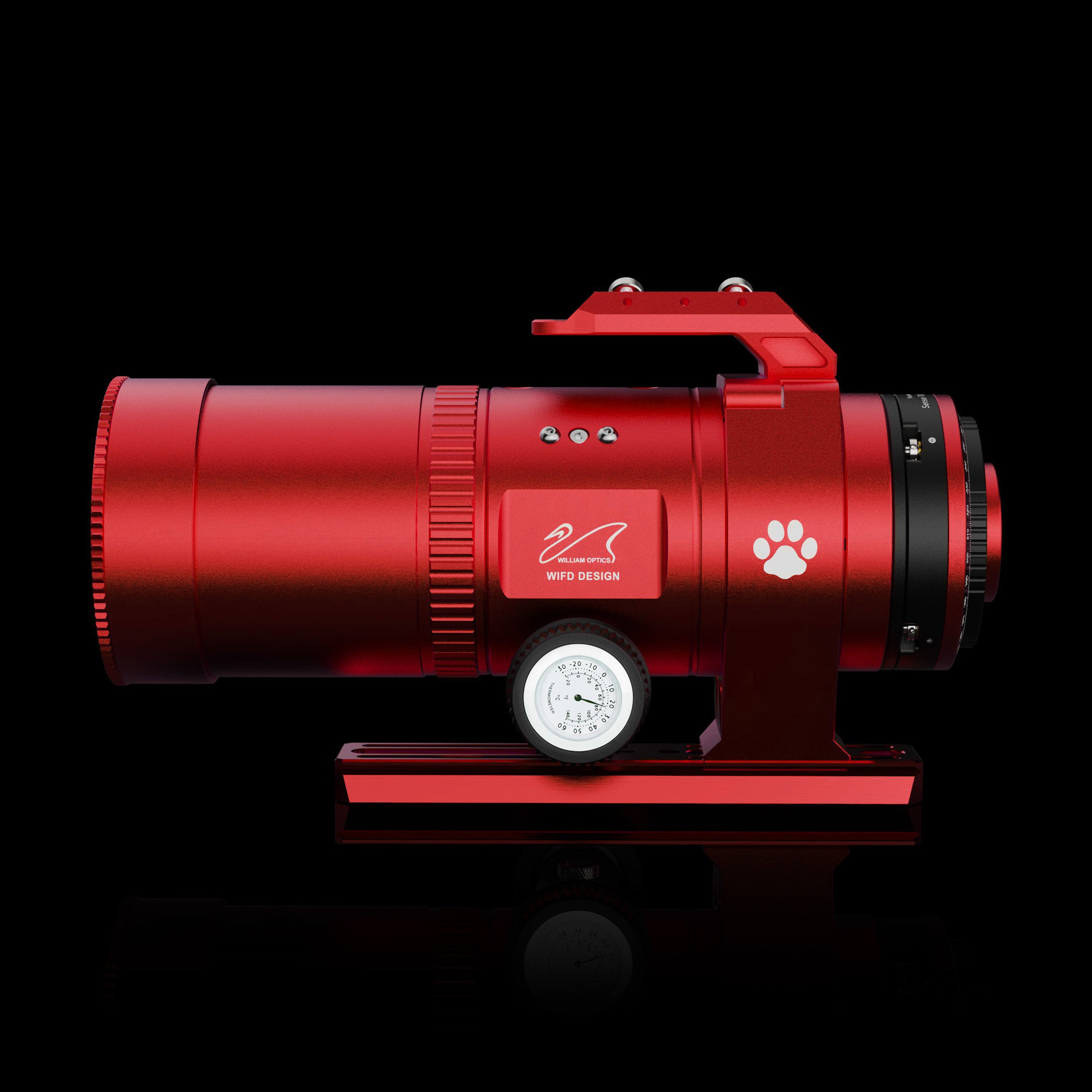

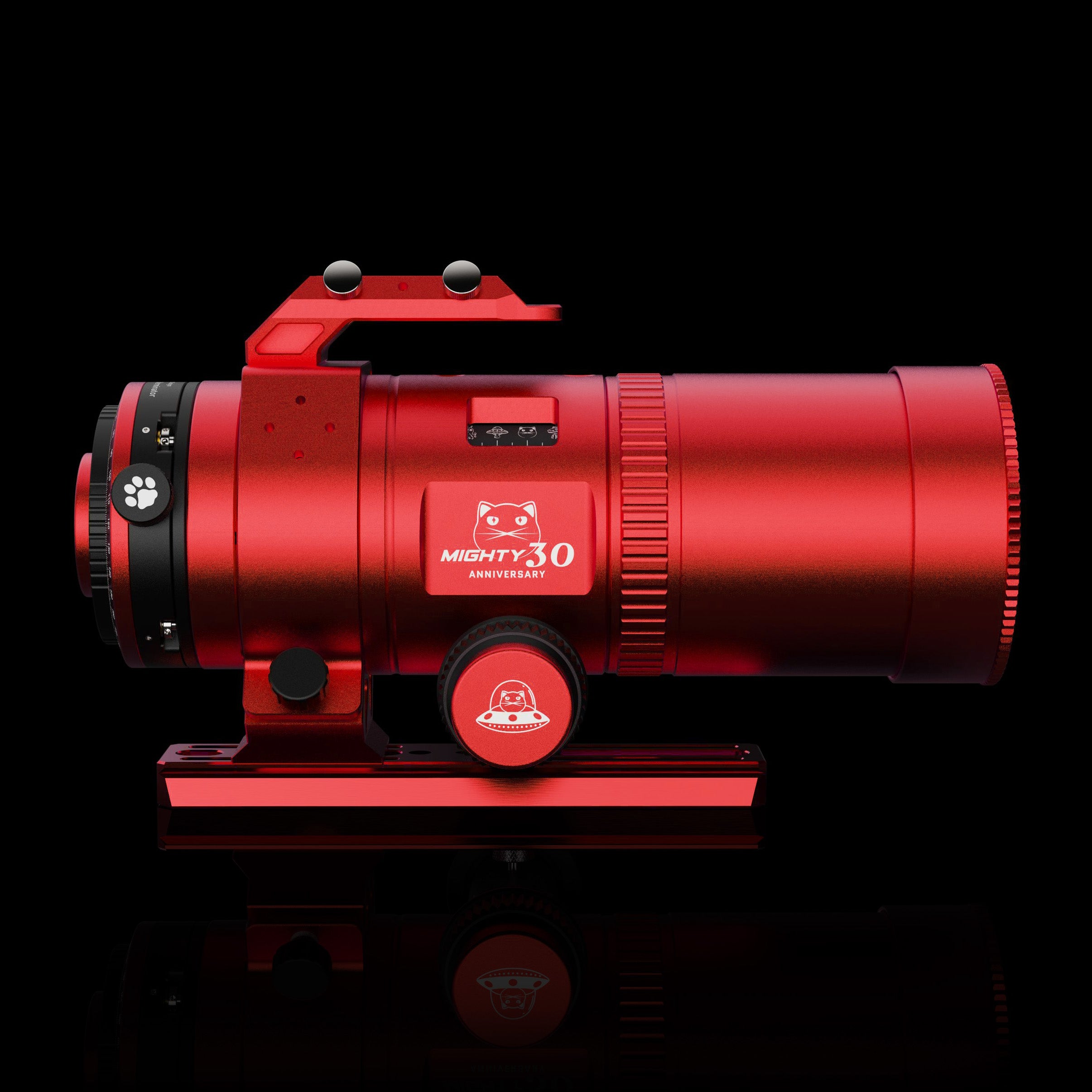

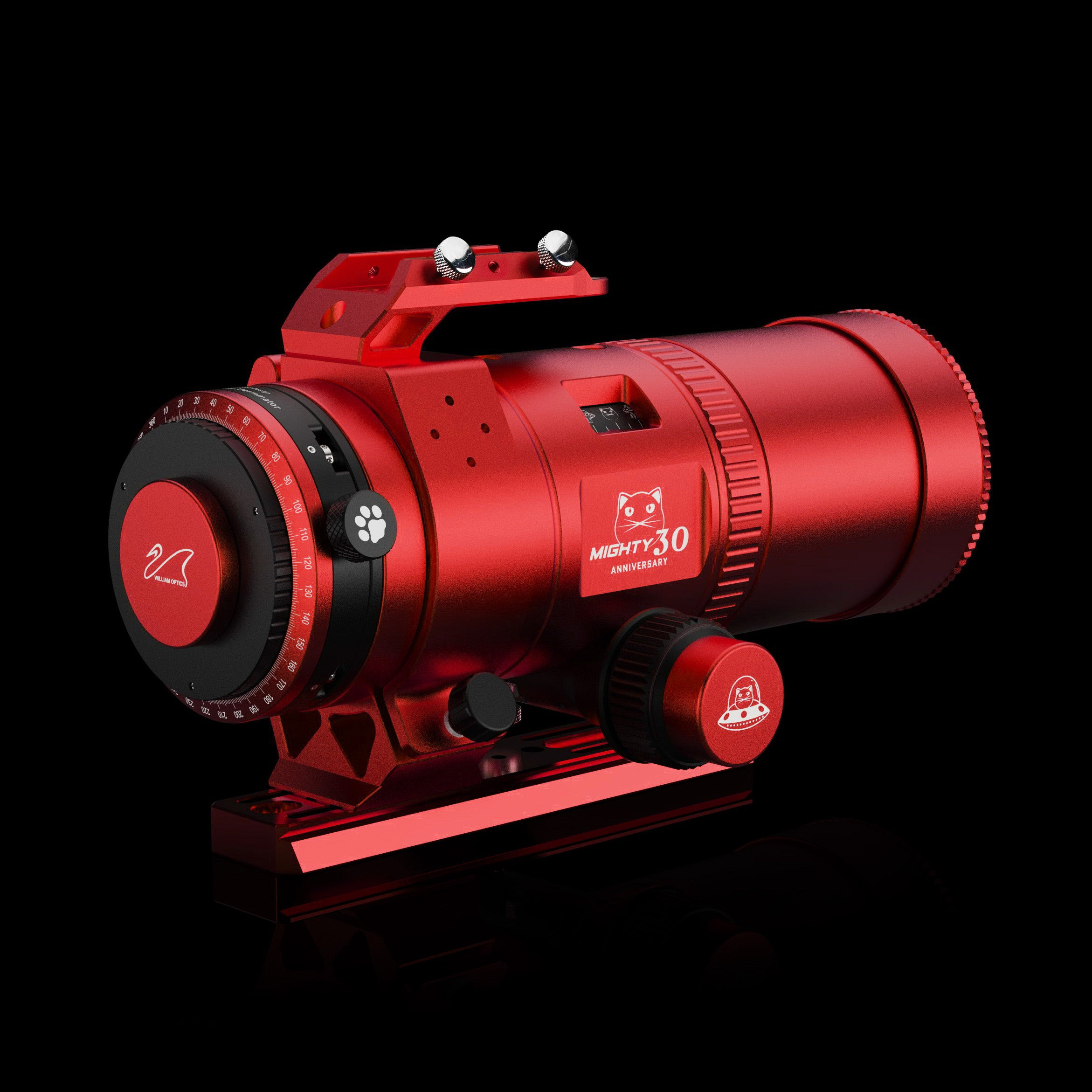

Mighty-Cat 71 · 30th Anniversary Limited Edition
The William Optics Mighty Cat 71 · 30 Years Anniversary Limited Edition is a groundbreaking 71mm apochromatic astrograph engineered to redefine ultra-fast deep-sky imaging. Celebrating three decades of optical innovation, this exclusive 100-set limited run features a custom "Cosmic Visitor" design adorned with intricate extraterrestrial motifs — a tribute to 30 years of peering into the unknown and chasing the mysteries of the universe. It introduces an unprecedented, record-breaking f/3.2 focal ratio—the fastest telescope William Optics has ever created—while featuring a 43.2mm image circle and the patented WIFD internal focusing system.
The ultra-fast f/3.2 optical system drastically reduces required exposure times, helping capture faint nebulae, dark dust lanes, and expansive celestial structures in a fraction of the time. With its flat-field 7-element optics, stable internal focusing, and a playful design that hints at technology from another world, the Mighty Cat 71 Anniversary Edition is built for demanding deep-sky imaging with modern full-frame and cropped-sensor camera systems.
Key Features:
F/3.2 Ultra-Fast Optics
Captures deep-sky objects with unparalleled efficiency, utilizing the fastest optical system in William Optics history to maximize photon collection and shorten exposure tracks.
7-Element EVO Petzval Design
Provides a naturally flat image field without requiring an additional field flattener, delivering sharp stars and clean detail across a wide imaging area.
43.2mm Full-Frame Image Circle
Supports full-frame, APS-C, and M4/3 camera systems, giving astrophotographers total freedom for wide-field composition and high-resolution deep-sky imaging.

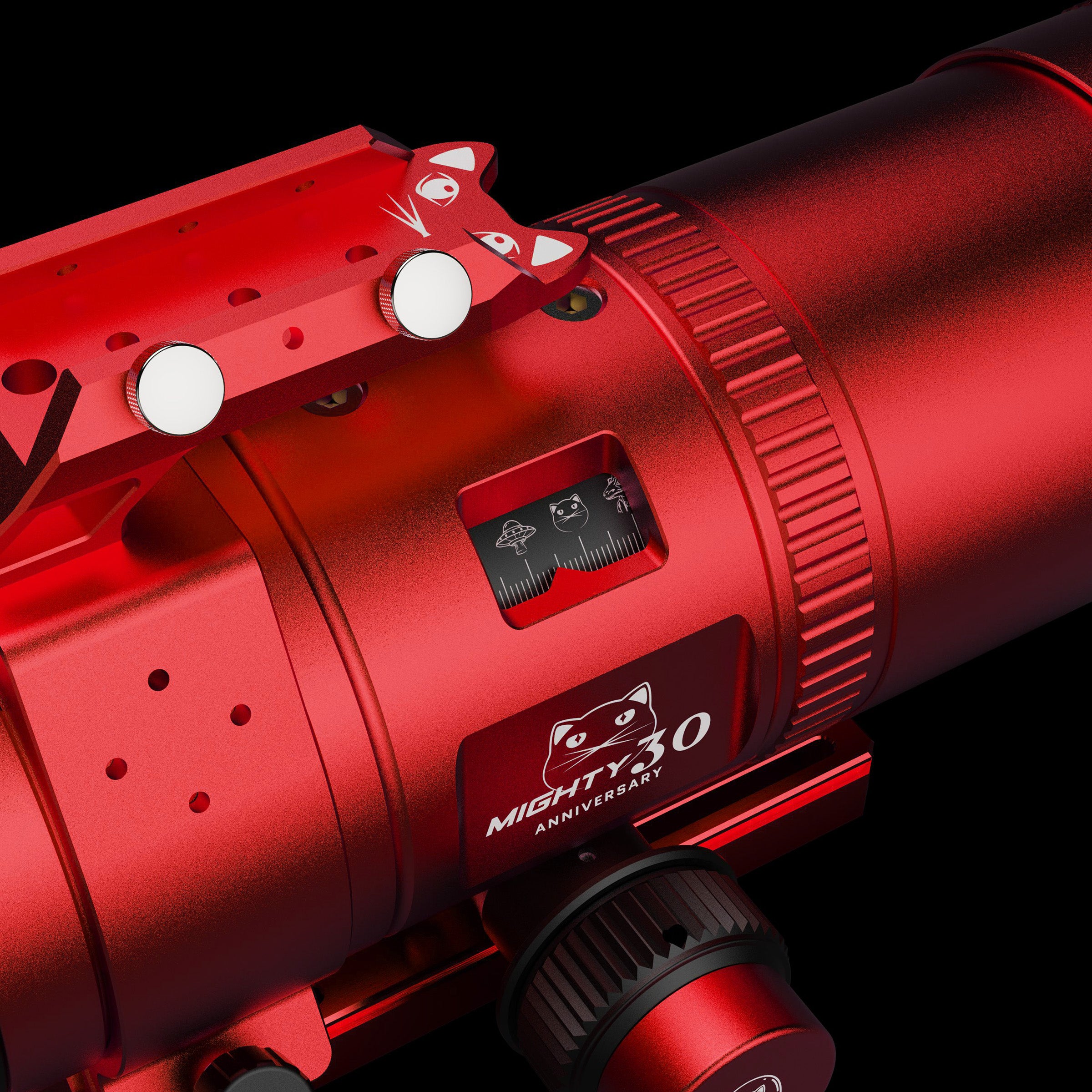

WIFD (William Optics Internal Focuser Design)
The patented internal focusing system keeps the focusing mechanism centered inside the telescope, improving balance and helping avoid rear drawtube-related flexure or vignetting.

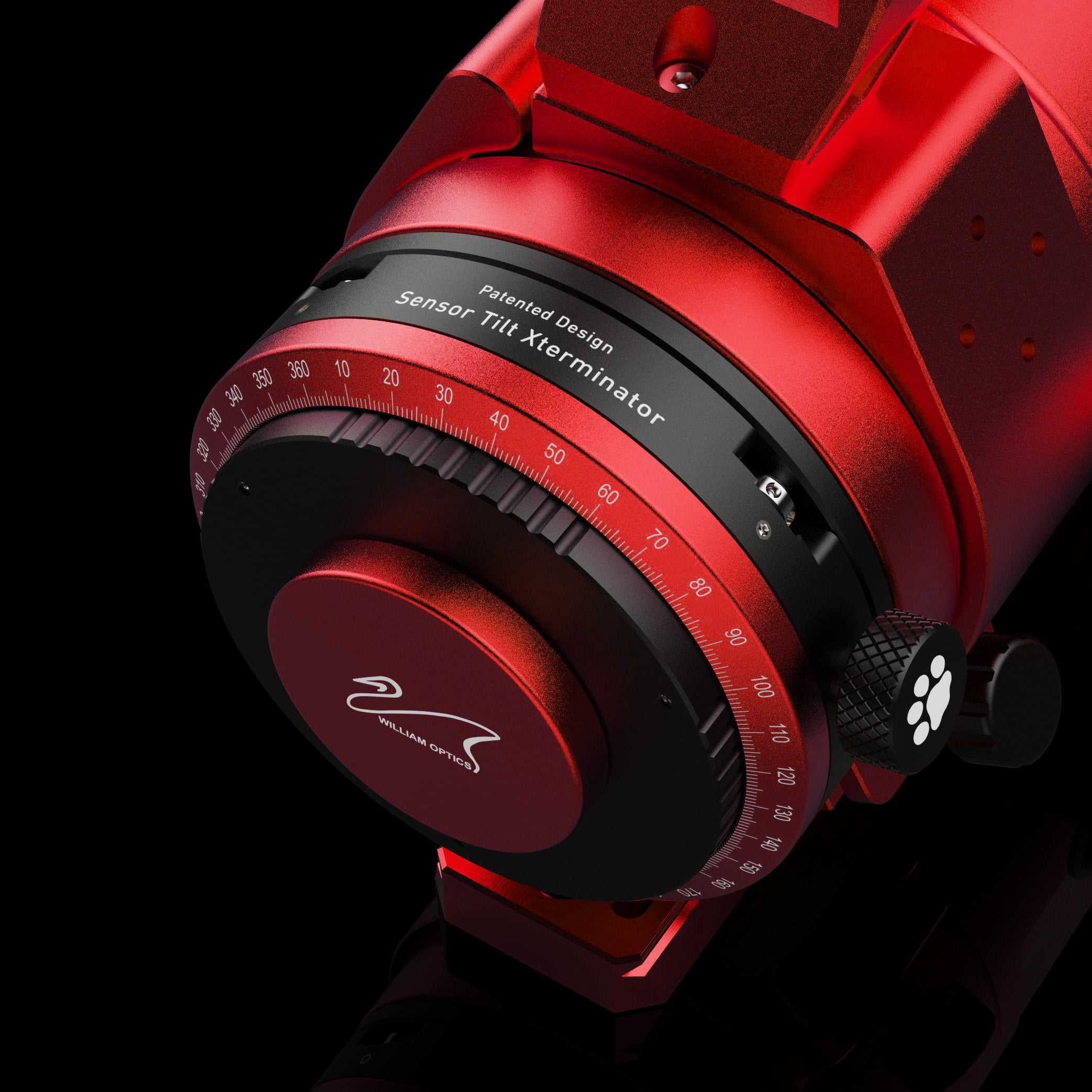

Sensor Tilt Xterminator (STX-R)
Features a heavy-duty rear tilt and rotation interface designed to support modern imaging setups, reducing the chance of rear-end sag while retaining convenient sensor-squaring capability.
Anti-Shrink Lens Cell Technology
Helps maintain stable optical alignment under changing temperatures by minimizing the effects of material expansion and contraction around the lens cell.

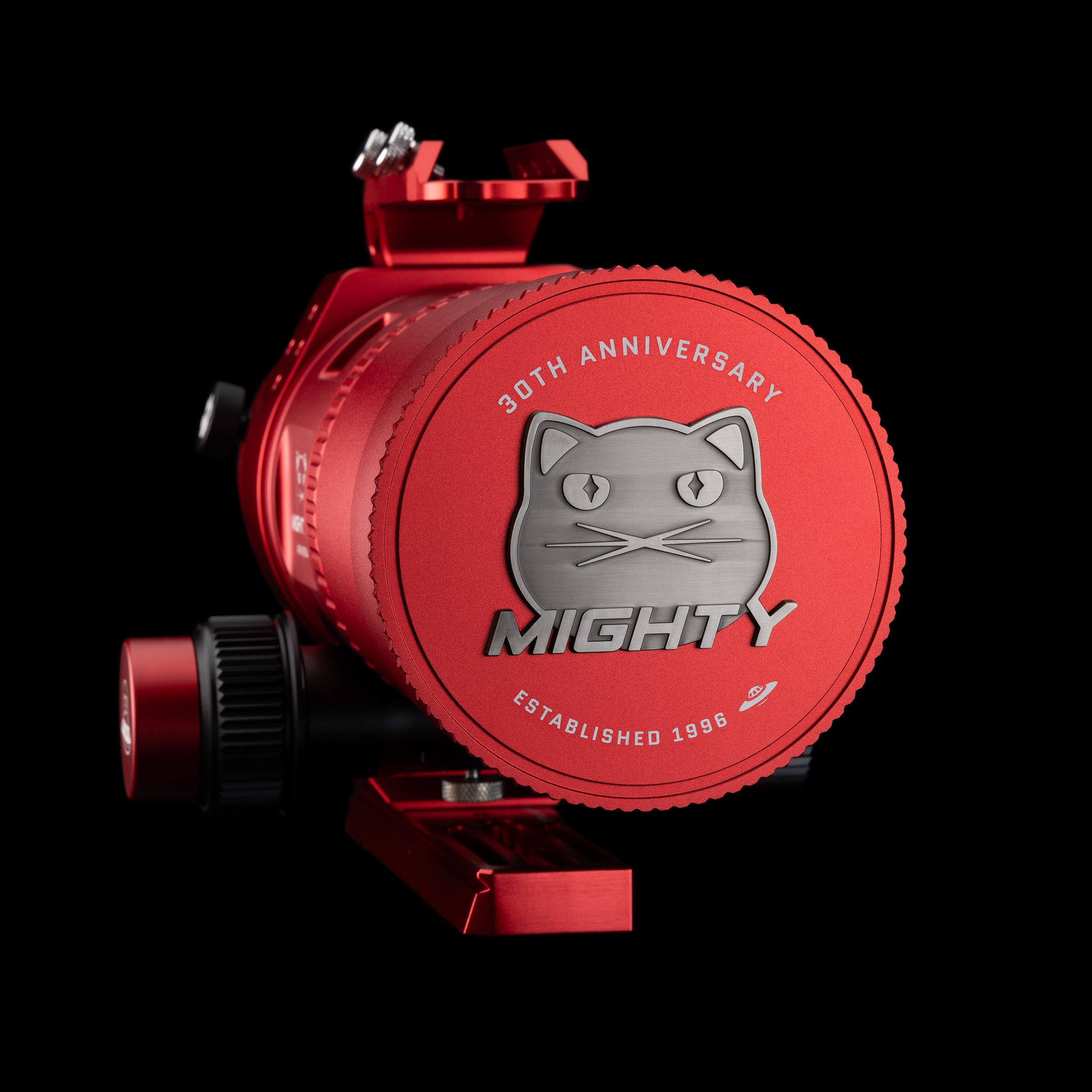

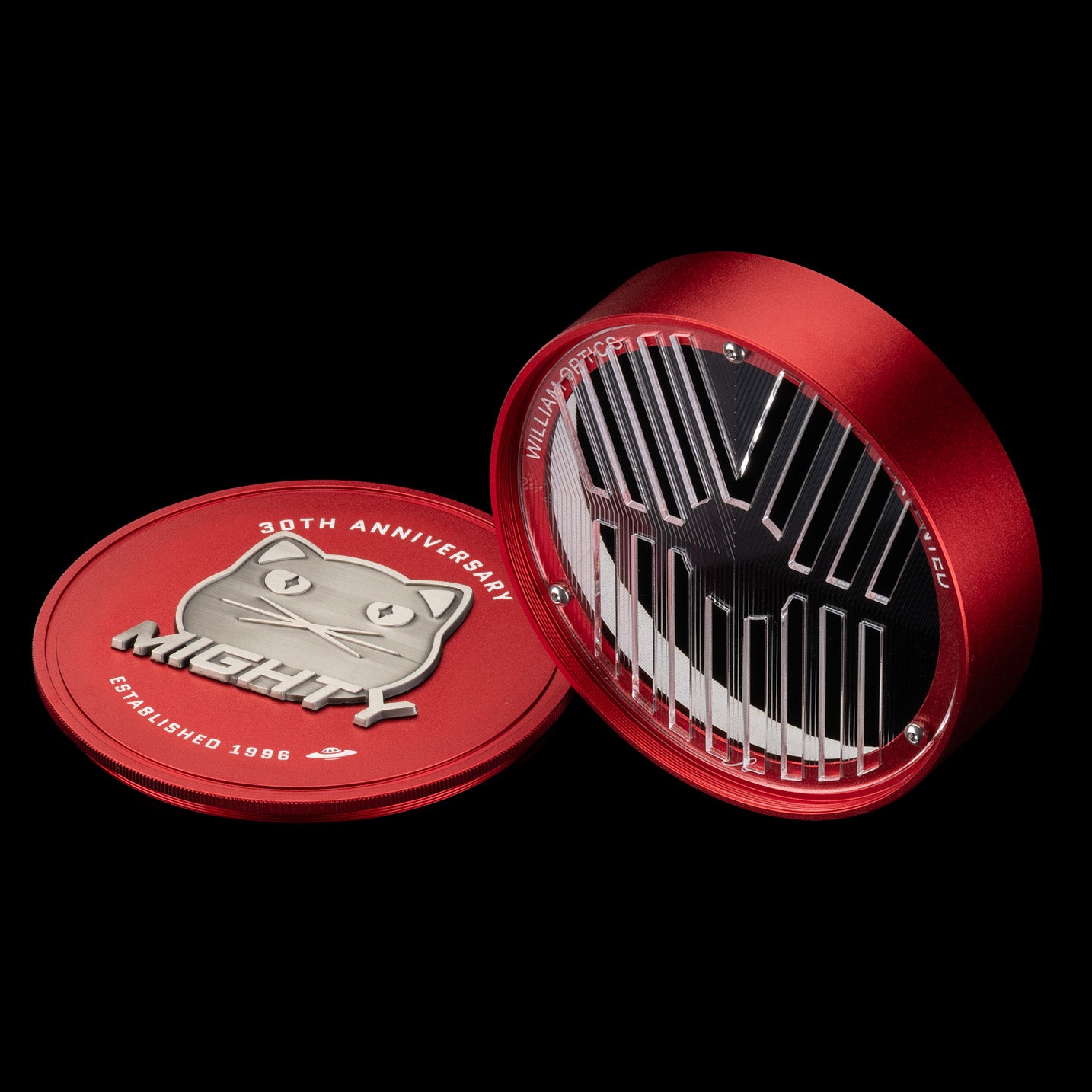

Built-In Patented Bahtinov Mask
Integrated into the front cap for quick and accurate focusing, making precise star focus easier in the field.
Patented Handle Bar Design
Improves handling, portability, and accessory mounting while maintaining the clean mechanical layout of the Mighty Cat platform.
Personalized Laser Engraving
Available for direct purchases, allowing each telescope to carry a customized personal mark.
Accessory Add-ons
Guider










UniGuide 32mm f/3.75
- Lens Type
- Doublet Lens
- Focal Length
- 120 mm
- Diameter
- 32 mm
- Focal Ratio
- f/3.75
- Tube Length
- 147 mm
- Total Weight
- 0.23 kg / 0.51 lbs
Camera





ZWO ASI 120MM Mini
- Sensor
- AR0130CS CMOS ( color )
- Resolution
- 1280 x 960
- Pixel Size
- 3.75μm
- Sensor Size
- 1/3″ ( 4.8 mm x 3.6 mm )
- Max Frame Rate
- 35 fps
- Read Noise
- 4.0e
- Quantum Efficiency
- 80%
- Exposure Range
- 64µs-1000s
- ADC
- 12 bit
- Flange Distance
- 8.5mm
- Camera Thread
- M28.5
- Adapter Included
- 1.25" Extender ( 22mm ) CS → M28.5 Adapter ( 4mm )
- Interface
- ST4 USB 2.0 Type-C
- Cable Included
- ST4 ( 2m ) USB 2.0 Type A↔C ( 0.5 & 2m )
- Camera Weight
- 60 g / 2.1 oz
Camera Adapter






Elite Drawer OAG Kit
- Light-In Side
- M54, M48, M68
- Light-Out Side
- Main: M54, M48 ( M42 optional ) / Guide: M42, 1.25" push-in
- Optical Length
- 37.5 mm
- Weight
- 336 g / 11.85 oz



M48 T-mount for Nikon Z Mirrorless
- Light-In Side
- M48 (female)
- Light-Out Side
- Nikon Z Mirrorless Camera Mount
- Optical Length
- 38.4 mm






M48 T-mount for Nikon F
- Light-In Side
- M48 (female)
- Light-Out Side
- Nikon F Camera Mount
- Optical Length
- 8.2 mm



M48 T-mount for Canon EOS R Mirrorless
- Light-In Side
- M48 (female)
- Light-Out Side
- Canon EOS R Camera Mount
- Optical Length
- 34.4 mm






M48 T-mount for Canon EOS
- Light-In Side
- M48 (female)
- Light-Out Side
- Canon EOS Camera Mount
- Optical Length
- 10.6 mm



T-mount for Sony E
- Light-In Side
- M48 (female)
- Light-Out Side
- Sony E Camera Mount
- Optical Length
- 36.7 mm



M48 T-mount for Pentax K
- Light-In Side
- M48 (female)
- Light-Out Side
- Pentax K Camera Mount
- Optical Length
- 9.3 mm



M48 T-mount for Fuji FX
- Light-In Side
- M48 (female)
- Light-Out Side
- Fuji FX Camera Mount
- Optical Length
- 37 mm



M48 T-mount for Olympus Micro 4/3
- Light-In Side
- M48 (female)
- Light-Out Side
- Olympus Micro 4/3 Camera Mount
- Optical Length
- 35.6 mm


M48 → M42 Adapter
- Light-In Side
- M48 (female)
- Light-Out Side
- M42 (male)
- Optical Length
- 5.3 mm
EQ Mount







ZWO AM5N RedCat Limited Edition
ZWO x William Optics Co-branded Limited Edition
Traditional equatorial mounts often require heavy counterweights, making them cumbersome to transport and balance. The AM5N addresses these challenges with a compact, counterweight-free design, offering enhanced portability and stability for amateur astrophotographers. Its optimized internal structure incorporates harmonic drive reducers and timing belts, delivering precise control and a 300:1 reduction ratio. The mount operates in both equatorial and alt-azimuth modes and can be controlled via Wi-Fi, Bluetooth, or a handheld controller.
Key Features
Enhanced Portability and Stability
Weighing only 5.5 kg, the AM5N supports payloads up to 15 kg without counterweights and up to 20 kg with counterweights, maintaining a balance between portability and performance.
Custom Harmonic Drive System
The AM5N features a custom harmonic drive system with a synchronous belt, ensuring high torque, zero backlash, and low periodic error of ±10 arcseconds.
Integrated Cable Management
Internal cable routing through the DEC saddle allows for seamless power and control connections, reducing cable clutter and the risk of snags during operation.
Dual Mount Modes
Switch effortlessly between equatorial and alt-azimuth modes using the ASI Mount App or the included hand controller. A status LED indicates the current mode: red for equatorial and green for alt-azimuth.
Wide Latitude Adjustment
The mount offers a full 0°–90° latitude adjustment range, accommodating various observing locations and setups.
Wireless and Wired Control Options
Control the AM5N via Wi-Fi, Bluetooth, or USB-C connections. The mount is compatible with the ASIAIR system and supports ASCOM and INDI protocols for versatile operation.
Power Failure Protection
An RA axis brake system engages automatically during power failures, safeguarding your equipment from potential damage.
Seamless ASIAIR Integration
The AM5N integrates seamlessly with ZWO's ASIAIR system, providing an optimized astrophotography experience through wired or wireless connections.




Tripod







Pier Mount 90
- Adapter
- 3/8" Thread ( for ZWO AM3/AM5 )
More EQ Mount types are optional - Weight
- approx. 7 kg
- Loading Capacity
- 90 kg / 198 lbs
- Height
- Stance: 89.3 cm Closed: 79.3 cm Foot Adjustable Height Range: 15 mm
- Material
- Aluminum Alloy
- Pillar Diameter
- 100 mm / 4"
![[Bundle] ZWO Mount Upgrade Kit](http://686485-4.myshopify.com/cdn/shop/files/ZWOMountUpgradeKit.jpg?v=1724140371&width=2400)
[Bundle] ZWO Mount Upgrade Kit
Make your ZWO AM3/5 tripod kit load-bearing and stable.


Tripod Extrapadding Backpack
This Tripod Extrapadding Backpack is specifically designed for astro EQ mounts tripod, offering added support and protection for your equipment.
- Thickness: 22mm
- Size: approximately 20 × 20 × 67 cm, with a measurement tolerance of ±3 cm.














Camouflage Tripod Pouch
Featuring durable Velcro straps for secure attachment, this pouch offers ample storage space to make your wildlife observation experience more convenient.
- Lens Type
- 7-Element EVO Petzval
- Lens Elements
- Includes Super ED Glass x3
- Focal Length
- 230 mm
- Diameter
- 71 mm
- Focal Ratio
- f/3.2
- Image Circle
- 43.2 mm
- Focuser
- WIFD R&P Focuser Compatible with EAF
- Focuser Travel
- 0-35 mm
- Adapter Included
- Sensor Tilt Xterminator (STX-R) Rotator M54, M48 Camera Adapters
- Optional Flattener
- No Flattener Required
- T-Mount Support
- Canon EF, RF Nikon F, Z Sony E Pentax K MFT (M4/3) FUJI X
- Camera Format
- Full Frame APS-C M4/3
- Dovetail Type
- Vixen ↔︎ Arca-Swiss
- Tube Length
- 315 mm
- OTA Weight
- 3.38 kg / 7.45 lbs
- Total Weight
- 4.1 kg / 9.04 lbs
Choose options










The William Optics Mighty Cat 71 · 30 Years Anniversary Limited Edition is a groundbreaking 71mm apochromatic astrograph engineered to redefine ultra-fast deep-sky imaging. Celebrating three decades of optical innovation, this exclusive 100-set limited run features a custom "Cosmic Visitor" design adorned with intricate extraterrestrial motifs — a tribute to 30 years of peering into the unknown and chasing the mysteries of the universe. It introduces an unprecedented, record-breaking f/3.2 focal ratio—the fastest telescope William Optics has ever created—while featuring a 43.2mm image circle and the patented WIFD internal focusing system.
The ultra-fast f/3.2 optical system drastically reduces required exposure times, helping capture faint nebulae, dark dust lanes, and expansive celestial structures in a fraction of the time. With its flat-field 7-element optics, stable internal focusing, and a playful design that hints at technology from another world, the Mighty Cat 71 Anniversary Edition is built for demanding deep-sky imaging with modern full-frame and cropped-sensor camera systems.
Key Features:
F/3.2 Ultra-Fast Optics
Captures deep-sky objects with unparalleled efficiency, utilizing the fastest optical system in William Optics history to maximize photon collection and shorten exposure tracks.
7-Element EVO Petzval Design
Provides a naturally flat image field without requiring an additional field flattener, delivering sharp stars and clean detail across a wide imaging area.
43.2mm Full-Frame Image Circle
Supports full-frame, APS-C, and M4/3 camera systems, giving astrophotographers total freedom for wide-field composition and high-resolution deep-sky imaging.
WIFD (William Optics Internal Focuser Design)
The patented internal focusing system keeps the focusing mechanism centered inside the telescope, improving balance and helping avoid rear drawtube-related flexure or vignetting.
Sensor Tilt Xterminator (STX-R)
Features a heavy-duty rear tilt and rotation interface designed to support modern imaging setups, reducing the chance of rear-end sag while retaining convenient sensor-squaring capability.
Anti-Shrink Lens Cell Technology
Helps maintain stable optical alignment under changing temperatures by minimizing the effects of material expansion and contraction around the lens cell.
Built-In Patented Bahtinov Mask
Integrated into the front cap for quick and accurate focusing, making precise star focus easier in the field.
Patented Handle Bar Design
Improves handling, portability, and accessory mounting while maintaining the clean mechanical layout of the Mighty Cat platform.
Personalized Laser Engraving
Available for direct purchases, allowing each telescope to carry a customized personal mark.
What's in the box

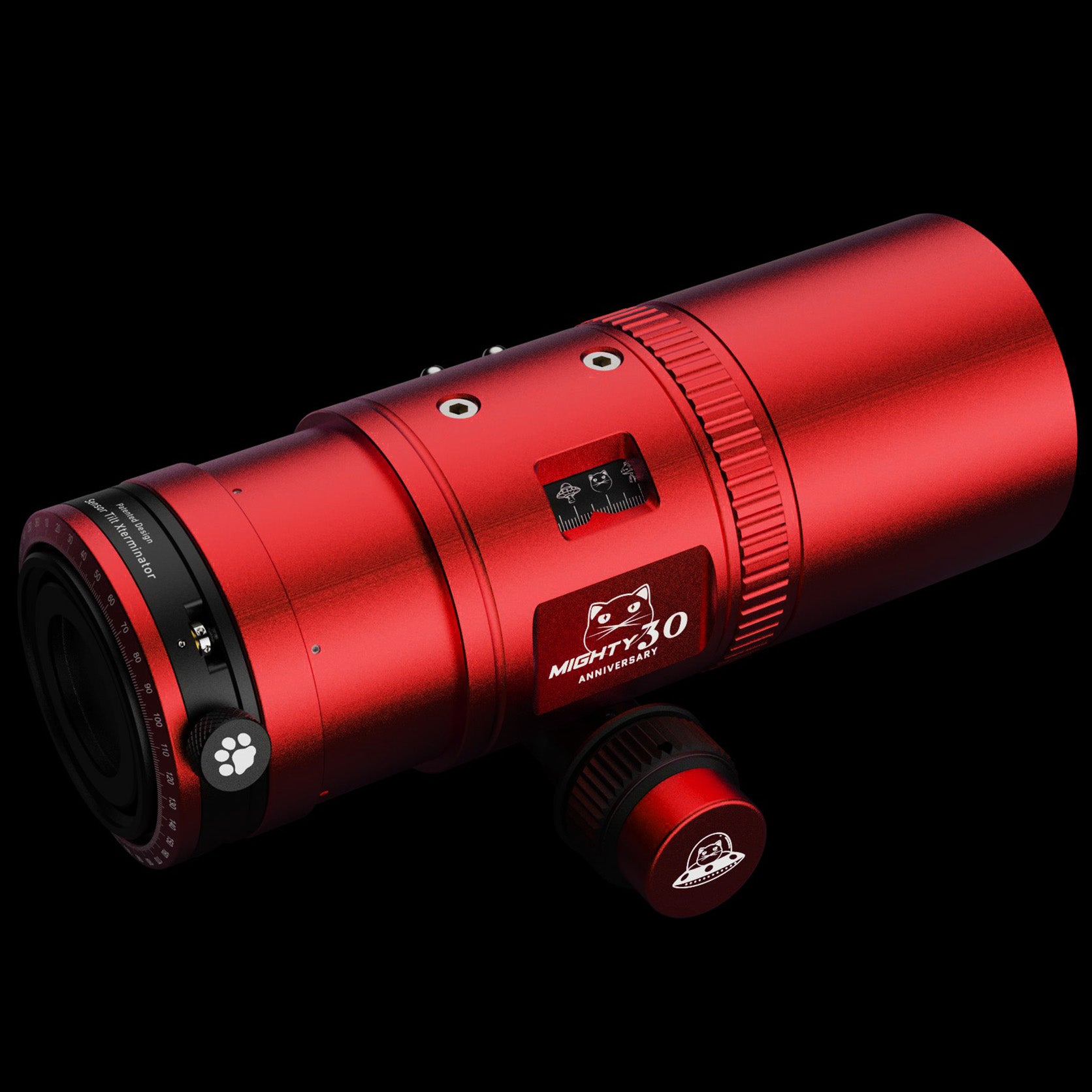

Main Tube

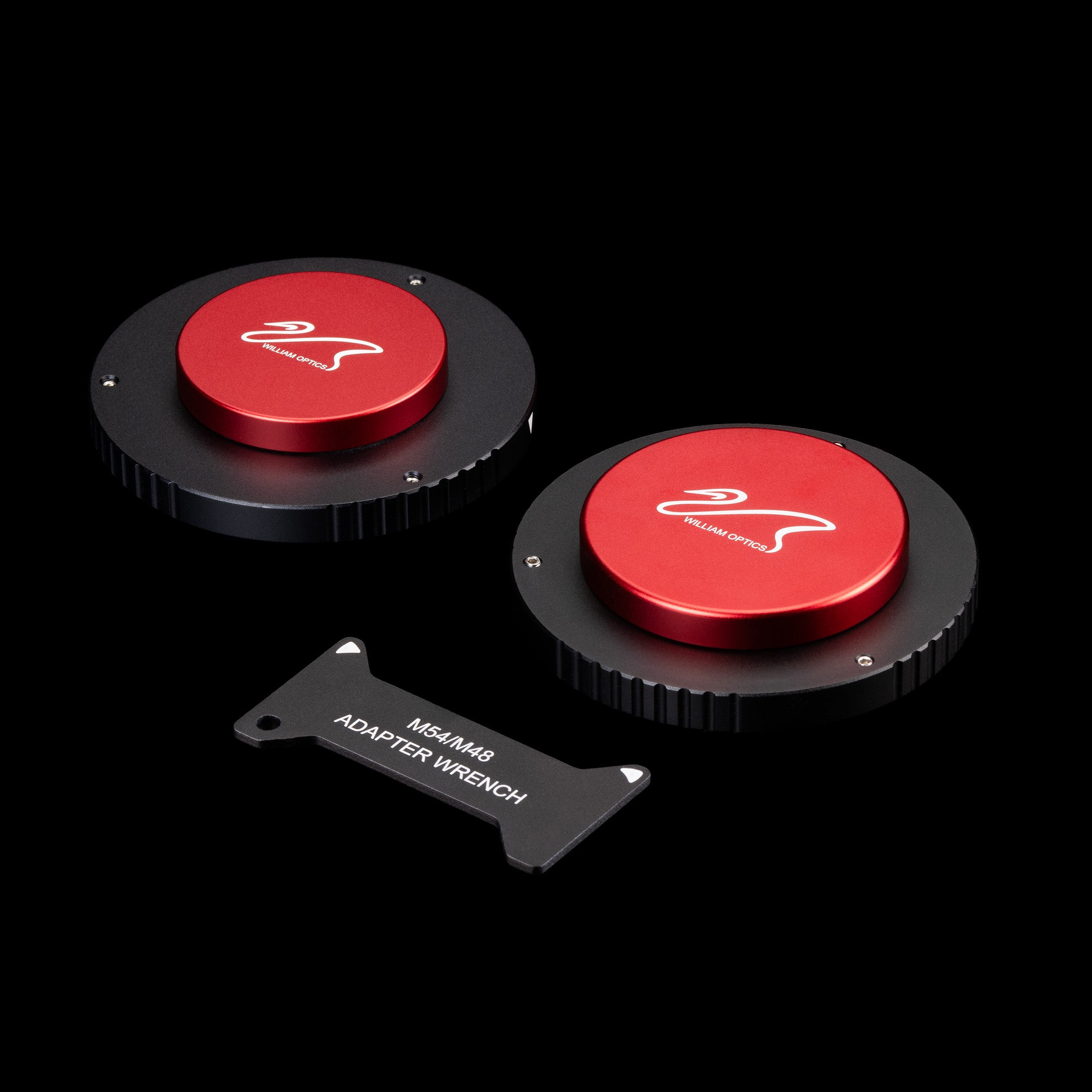

Bahtinov Cap

M48, M54 Adapter with Wrench

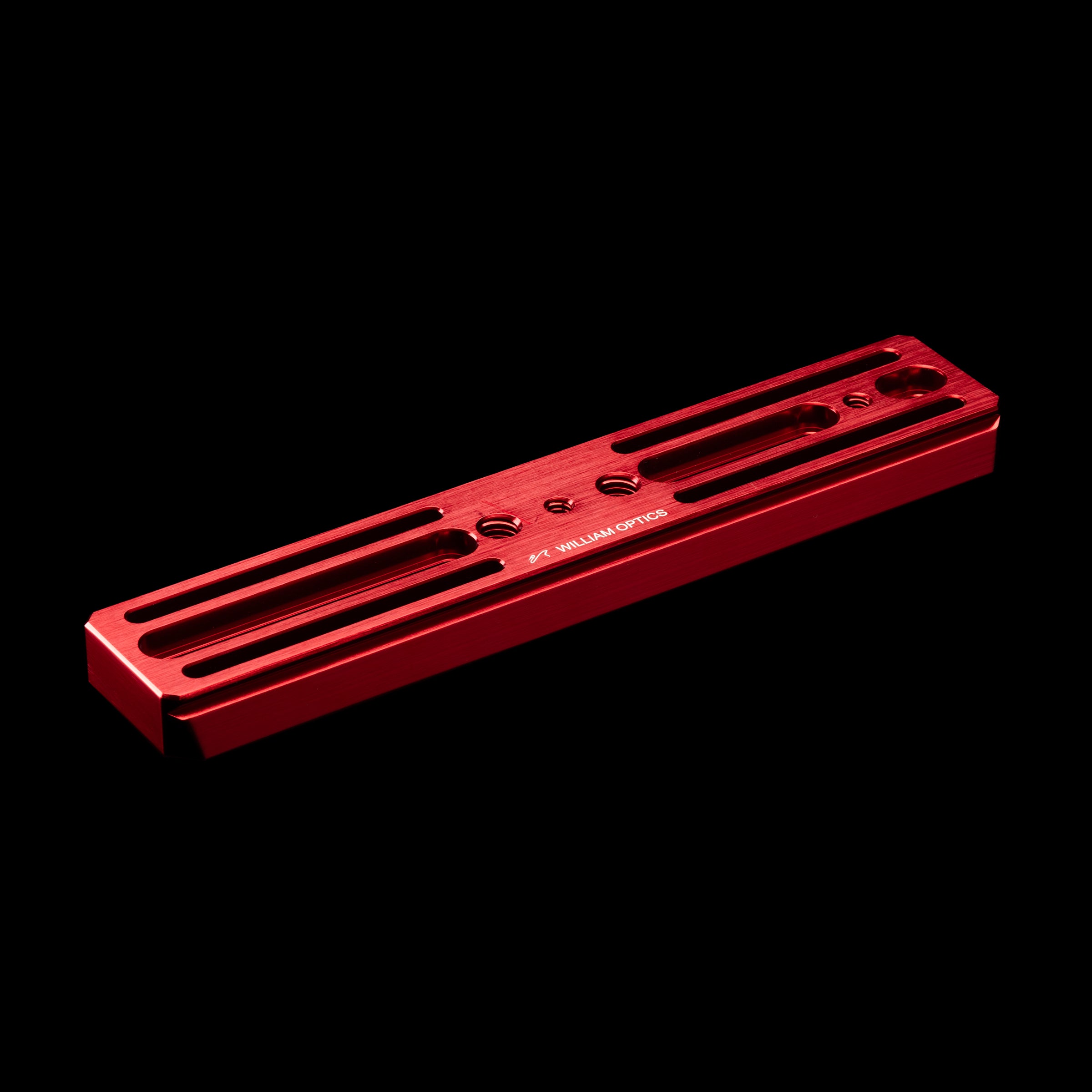

Dual-side Plate

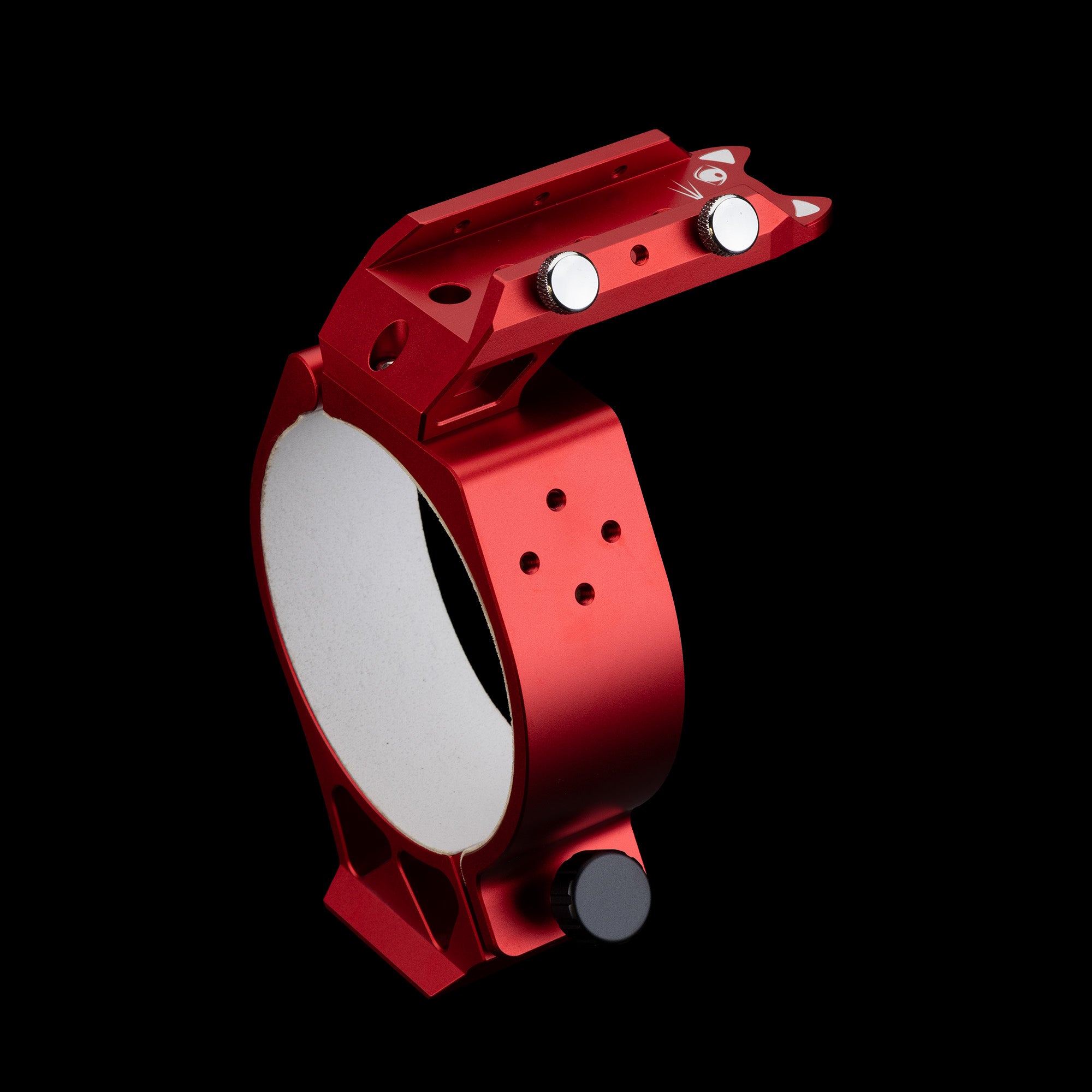

Mounting Ring & Handle bar

Allen Key Set

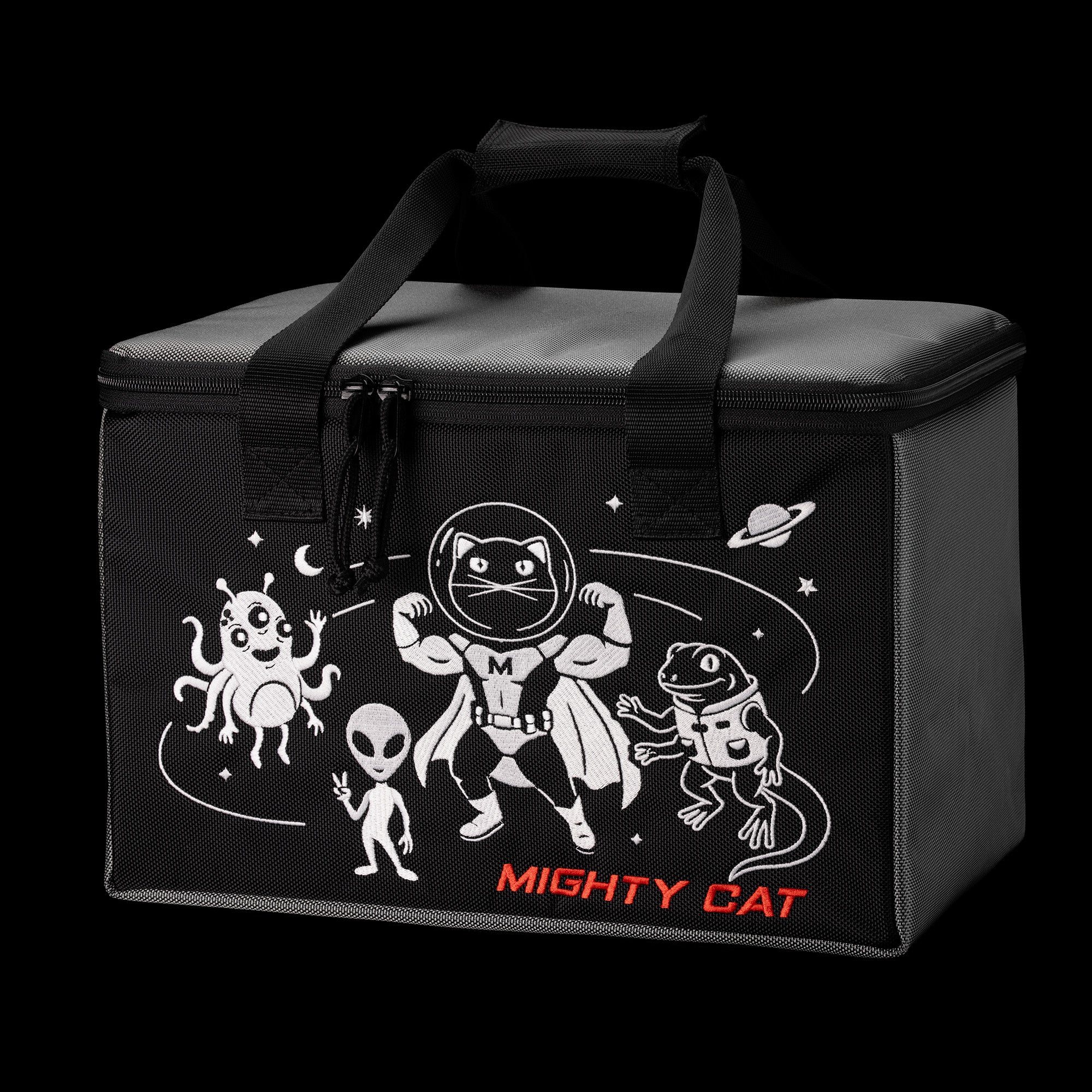

Soft Carry Case

Product Packaging

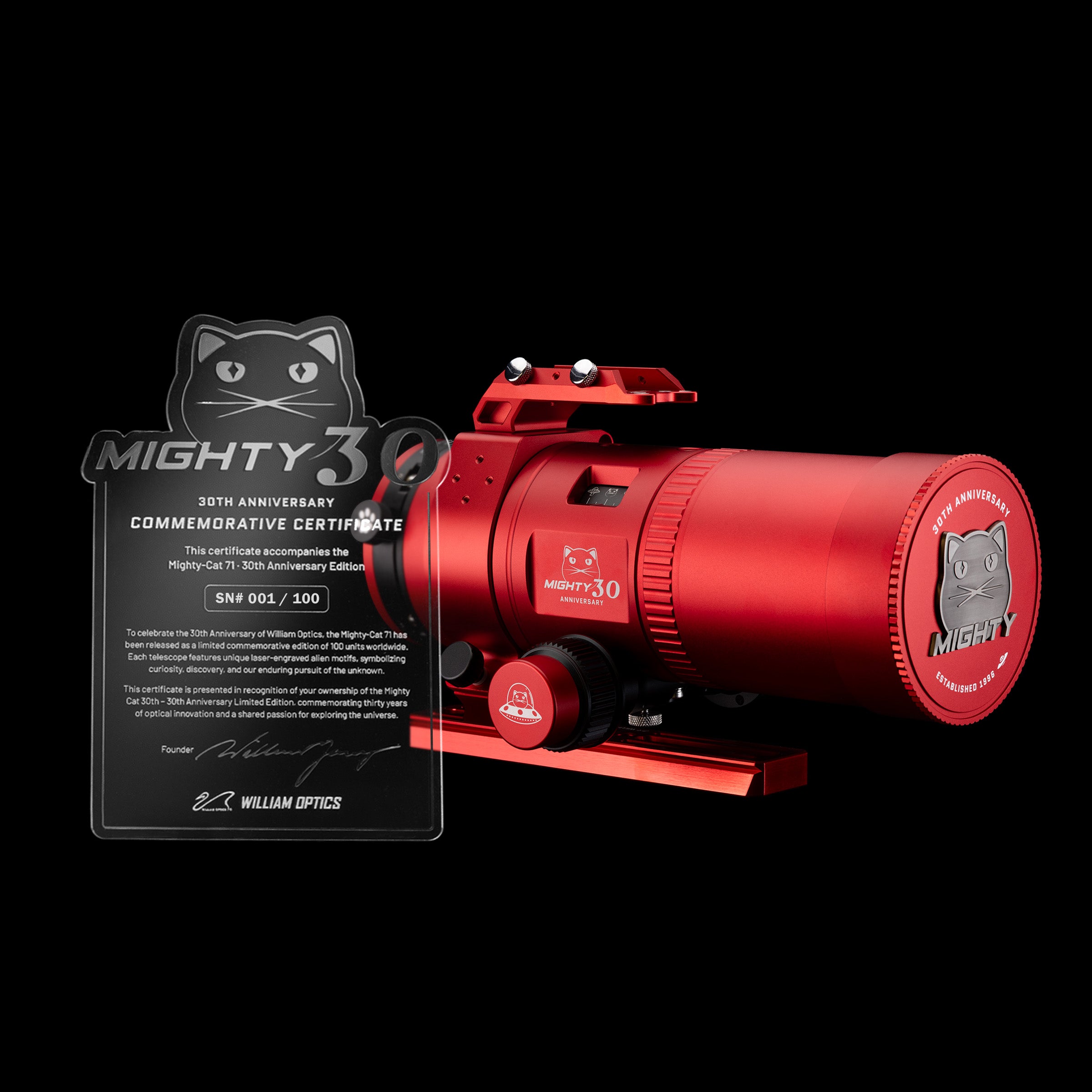

Commemorative Certificate
